必ずお読みください

1. 日本語版

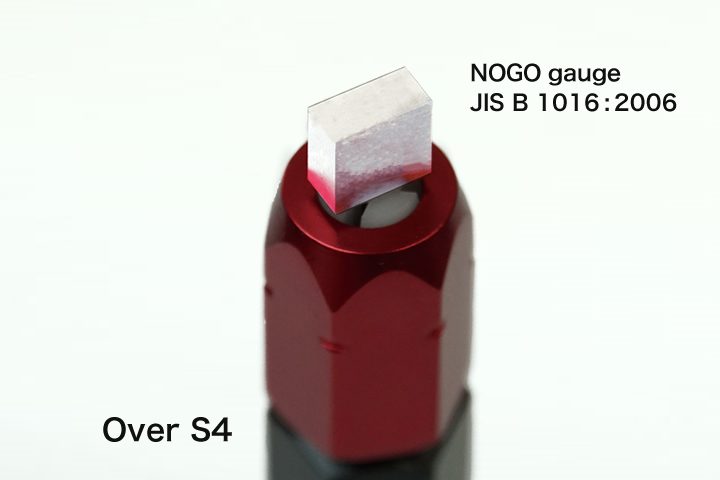

2. Hexagonal GO/NOGO gauge is a gauge to inspect Hexagon hole has been machined properly.Each gauge is designed to be held by hand and inserted into the hexagon hole. If the NOGO-gauge(red) fits, then the hole is too large and the part fails inspection. If the GO-gage(blue) fits, then the hole is the right size and the part will pass inspection. If the hole was too small the GO-gauge would not have fit inside.

   Hexagonal gauge can support an inspection operator to efficiently perform an inspection work at an inspection place.

3. When you use Hexagonal gauge do not increase high pressure to side-direction and rotatory direction. It causes the gauge damage.

4. Gauge tip have micro R (R 0.05 ) of the prevention of injury.

5. we accept proofreading of the gauge.

6. In the case of the delivery, We attach a measurement list of the 0.001 mm unit.
   We can attach a certificate of the measuring equipment if  you want. (separately an expense)

7. Delivery date is less than 7days after an order.(Excluding weekends and holidays)

材質
